Valve/Tube Guitar Preamp

[Tod Gilding]

I haven’t been very happy with the tone that I have been getting from my handmade Acoustic pickups. I make something similar to the K & K using 3 piezo discs and have been experimenting with different arrangements such as encasing the discs in different materials, I am now getting a good tone but I thought that it could be a lot better, so I picked up this little $30, Tube/Valve Preamp Kit and put it together, the tone using this preamp is fantastic, I can highly recommend them to anyone looking to improve a guitars tone Acoustic or electric, Bass
This preamp has 2 Dip switches that act as high and low pass filters to tailor the sound to a particular instrument however if being used with a bass guitar or HiFi system, a capacitor needs to be changed for a .022uf

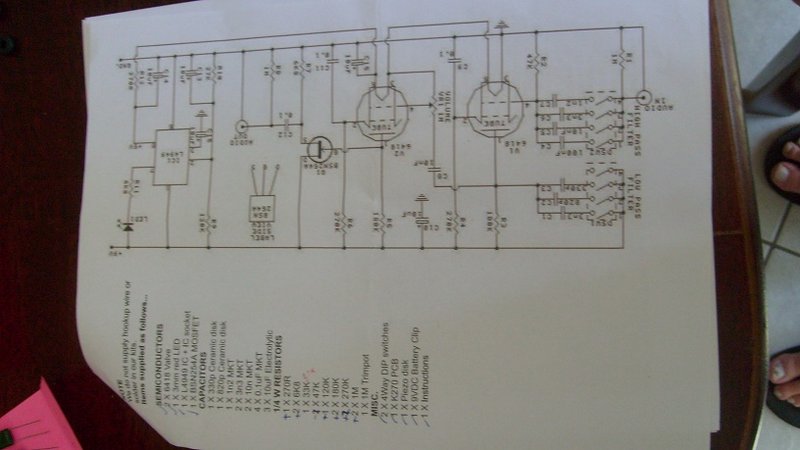

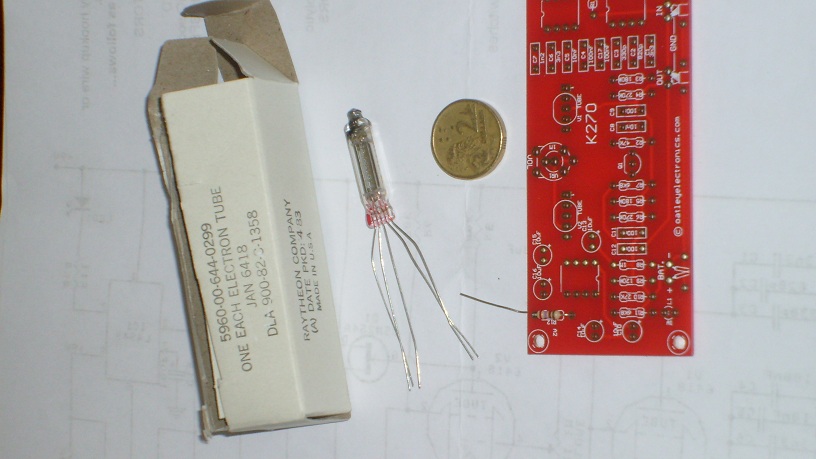

It also has a 1M trimpot for gain and is based on two low power consumption Raytheon JAN6418 sub- miniature pentodes, these tubes were designed for the Audio Technica AT 3060 valve condenser microphone that retails for $600US.
These Valves run cool and can only be seen glowing in a very dark area due to the 1.2V filament drawing only 10mA , the whole preamp draws just 11mA from a 9V battery , the circuit checks the battery power at startup and has a LED that flashes once if the battery is above 7V and will remain on continuous if the voltage drops below this .
The tubes, like all tubes they are micro phonic but with 2 rubber grommets placed over the tubes this is reduced considerably and makes this preamp suitable for mounting internally in the guitar or externally as I have done with this particular one so that I can experiment with different instruments.

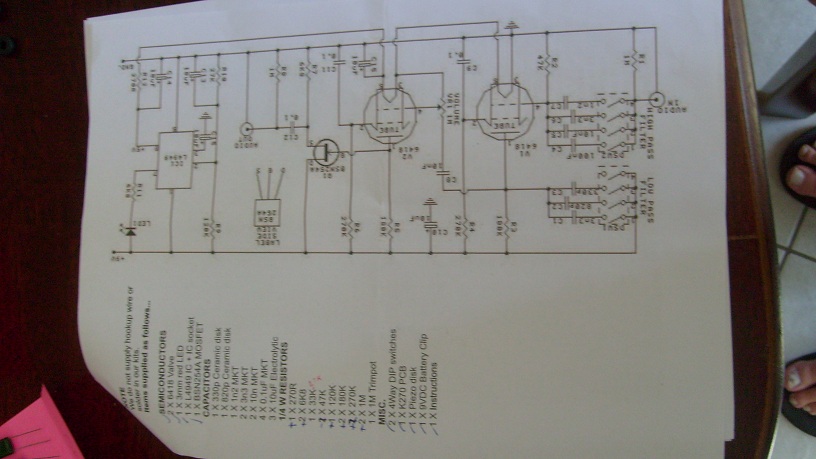

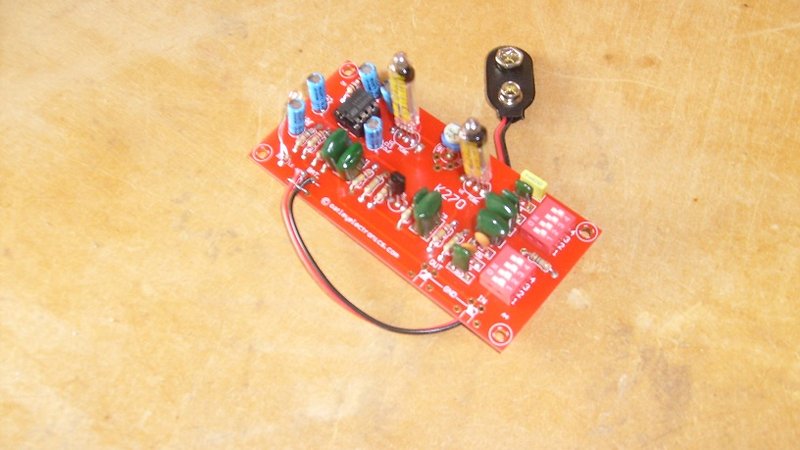

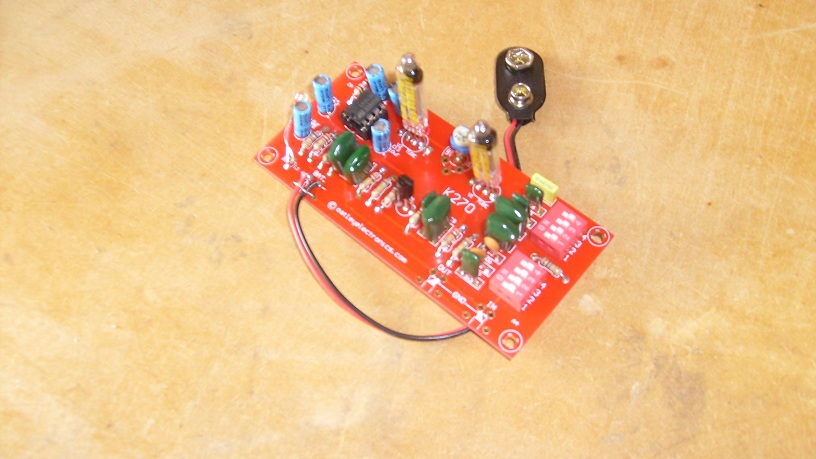

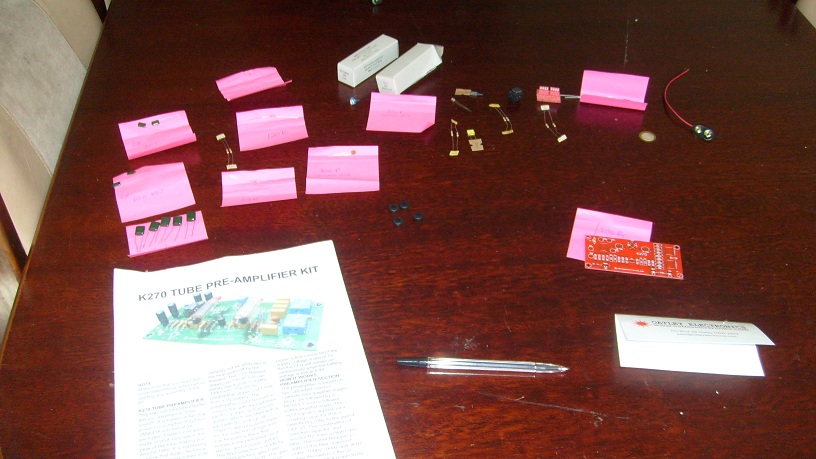

It took me about 1 ½ hrs to solder the components which are all marked on the PCB , a little like painting by numbers .If I can do it anyone could. A Highly recommended little preamp.

http://secure.oatleyelectronics.com//ad ... 2&x=15&y=5

[Tod Gilding]

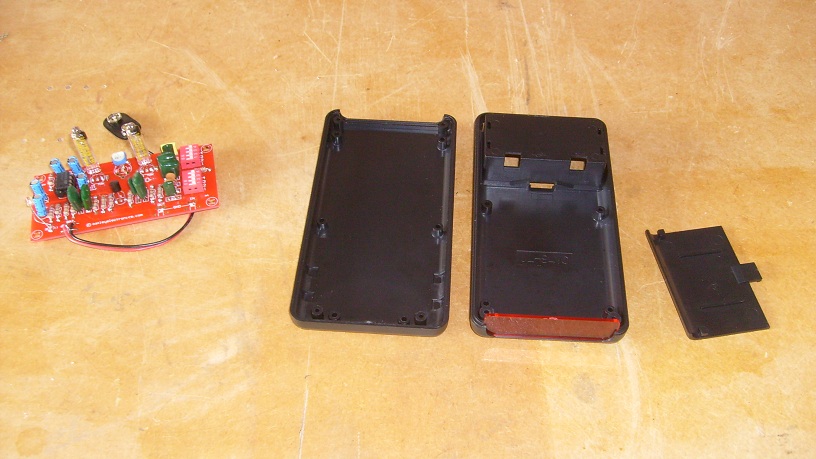

I should add that I have had no RFI ( frequency interference )with this unit testing on the bench, but that doesn't mean anything.I plan to enclose this Preamp in a case (pictured ) and will line the case with copper and possibly encase the board in foam to prevent RFI and vibration, will report back when this is done.

[Allen]

So Todd. You do any more testing on this unit? I'm pretty interested in your results, and how you've integrated it into the rest of your set up.

[Tod Gilding]

Yes Allen I have it set up as an external preamp and have tried it out with quite a few different guitars electric and acoustic, I can't speak highly enough of it IMHO I think it is a great bit of kit when put inline with any PASSIVE system either piezo disks or undersaddle compression type tranducers I havnt tried it with the K&K disk type pups but can see no reason why they wouldn't be as compatible as any other piezo disc.

I am planning on mounting this internally in a dread build that will come as soon as I can get my current build completed, the only thing with it is no EQ from the guitar this needs to be done from the PA or AMP but I dont see this as a problem.

Bottom line is that the results have been positive. it took me about 2 hours to solder it up if time is not a problem then a high quality great sounding preamp can be built very cheap.

it also has a high and low pass filter that can be used to talior the output for a particular instrument and a gain pot, but once set for a particular instrument there is no need to access these controls again.

hope I covered what you wanted to know if not let me know
