KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Tue Oct 19, 2010 2:56 am

So here we go again, trying to report on a little guitar that we're doing w/ (almost) all Ozzie timbers. Our own illustrious Bob sent me a King Billy Pine top to test drive and report back on.
The back and sides came from Tim Spittle...as did the Tiger Myrtle used for rosette, bridge and headplate. My contribution is the mahog and Koa lam for neck, as well as Sitka brace material.

Here goes:

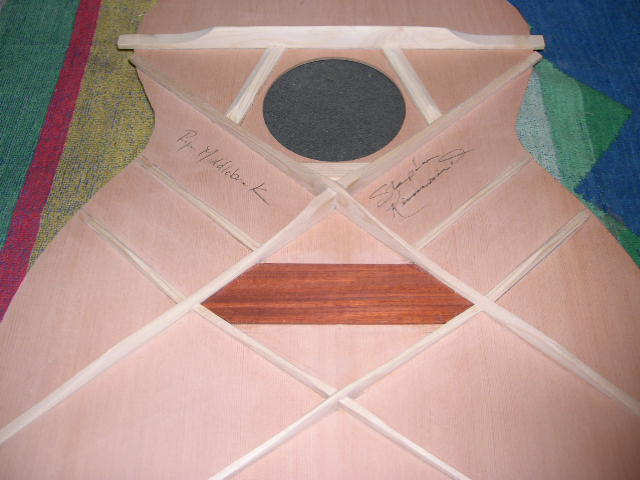

1st, a view of the top, and our bracing solution. This is the floppiest top to come through our shop, which doesn't disqualify it, but presents more of a challenge in bracing. Based upon Bob's success with a double "X" we followed suit, and here's the result:
Top3 Sm.jpg
Top3 Sm.jpg (52.29 KiB) Viewed 25185 times

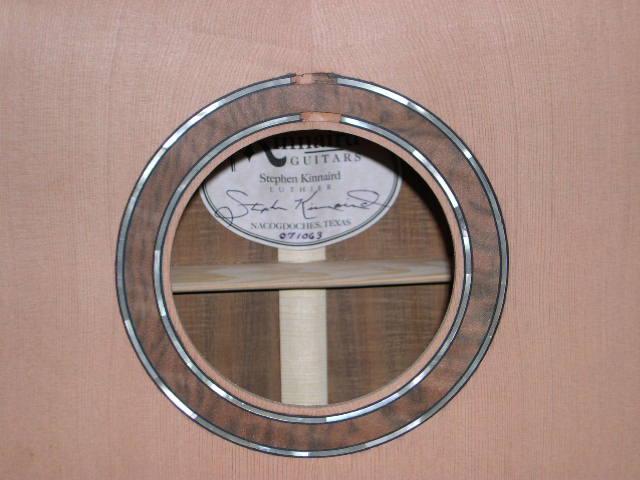

Let me show the rosette, which is from a nice piece of Tiger Myrtle Timmy supplied. Bordered by pale red ab, which is a nice color match, but I began to regret the choice when putting it all around the top as purfling:

Top5 Sm.jpg
Top5 Sm.jpg (55.77 KiB) Viewed 25185 times

More soon, and thanks for watching,

Steve
There are some great woods, down under!

User avatar
Lillian
Blackwood
Posts: 1705
Joined: Fri Sep 28, 2007 10:31 pm
Location: New Mexico, USA
Contact:

Re: KB Pine/Blackwood OOO

Post by Lillian » Tue Oct 19, 2010 3:36 am

Stephen Kinnaird wrote: Let me show the rosette, which is from a nice piece of Tiger Myrtle Timmy supplied. Bordered by pale red ab, which is a nice color match, but I began to regret the choice when putting it all around the top as purfling:

Steve

Why the regret Steve? Cost, bling or both?


I love what you're showing so far. I think its going to be stunning under finish.

User avatar
Craig
Admin
Posts: 1090
Joined: Wed Sep 26, 2007 10:08 am
Location: N.S.W. in the bush

Re: KB Pine/Blackwood OOO

Post by Craig » Tue Oct 19, 2010 7:54 am

I agree with Lillian . Looks great to me. The colour of the Ab. seems to suit . In my opinion a more colouful Ab. ( Paua etc ) would be all too much next to the Tiger Myrtle.

Is that the Zipflex product Steve ?
Craig Lawrence

User avatar
Bob Connor
Admin
Posts: 3132
Joined: Mon Jul 09, 2007 9:43 pm
Location: Geelong, Australia
Contact:

Re: KB Pine/Blackwood OOO

Post by Bob Connor » Tue Oct 19, 2010 8:00 am

Real luthiers don't use zipfllex Craig. :D

Looks like the real deal to me and I reckon Steve is alluding to the fact that matching up one inch pieces of shell around a guitar is a very time consuming job.
Bob, Geelong
_______________________________________

Mainwaring and Connor Guitars

User avatar
Craig
Admin
Posts: 1090
Joined: Wed Sep 26, 2007 10:08 am
Location: N.S.W. in the bush

Re: KB Pine/Blackwood OOO

Post by Craig » Tue Oct 19, 2010 8:09 am

bob wrote:Real luthiers don't use zipfllex Craig. :D
:oops: Of course they don't . My humble apologies Steve :oops: ,,,,,,,,It's all Horst's fault :lol:
Craig Lawrence

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Tue Oct 19, 2010 2:19 pm

Yes, allow me to explain myself:
Bob is right, that's solid shell. I like the color just fine, and really don't begrudge the labor of installation. It's just SO hard to make the joints invisible on pale-colored pearl. Everything shows. Also, the color matching becomes hyper crytical, and that's what takes as much time as anything else.
When leveled, I've found the colors shifting, and at times surprisingly.

I'll snap a pic in a bit, and show you what I mean.

Thanks for the kind words all,

Steve
There are some great woods, down under!

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Wed Oct 20, 2010 4:29 am

A bit more--

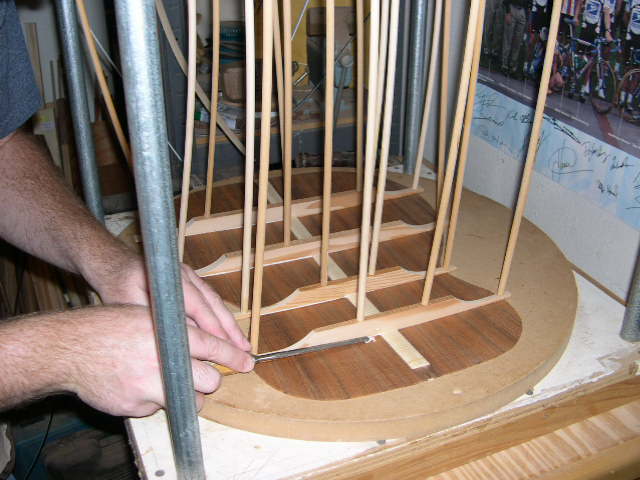

Here we are gluing back braces on, using a 15' radius dish:

Back2 Sm.jpg
Back2 Sm.jpg (61.16 KiB) Viewed 25067 times

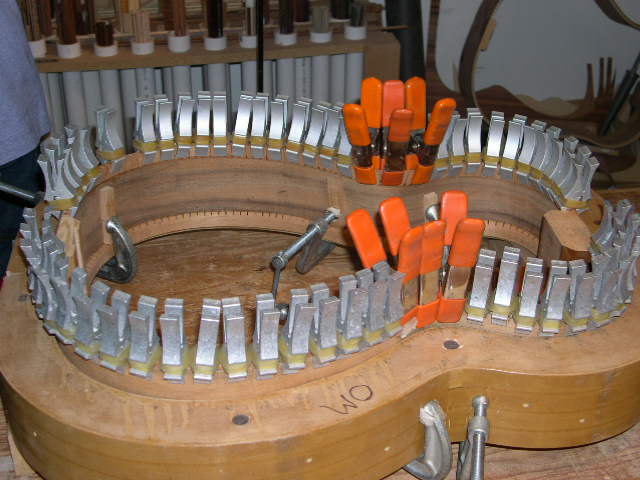

Gluing in the linings:

Rims Sm.jpg
Rims Sm.jpg (59.91 KiB) Viewed 25067 times

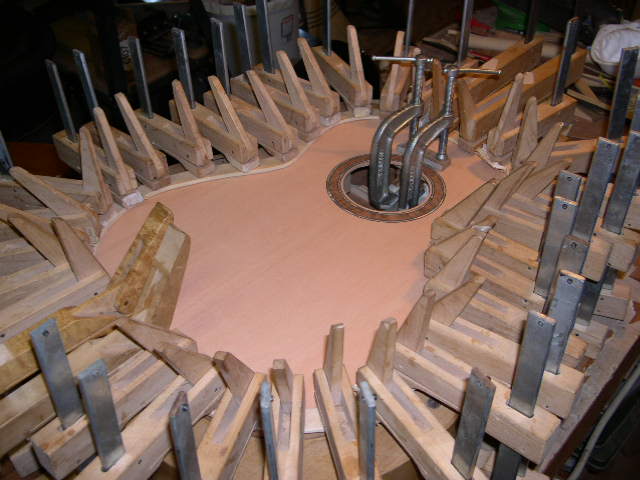

Closing the box with a modest assortment of clamps:

Top4 Sm.jpg
Top4 Sm.jpg (58.58 KiB) Viewed 25067 times

Cheers,

Steve
There are some great woods, down under!

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Sat Oct 23, 2010 2:25 pm

Someone once said there are some great woods down under.
So, so true.

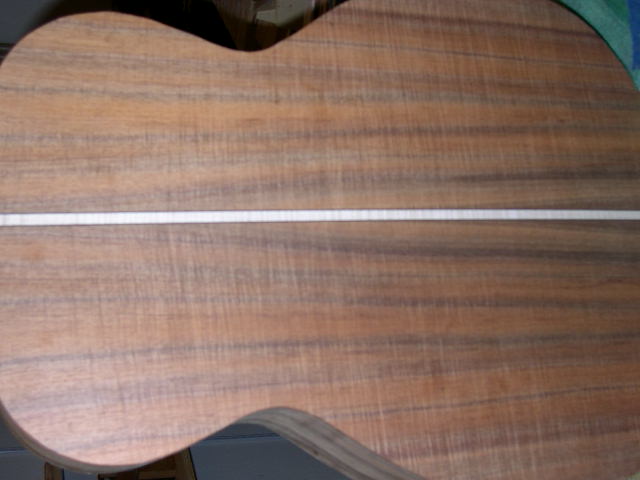

Here's the back of this guitar:

Back1 Sm.jpg
Back1 Sm.jpg (38.66 KiB) Viewed 25018 times
Had to turn it sideways to get the site to accept it...interesting. Anyway, you will recognize the Tasmanian Blackwood back (thank you Tim) but might enjoy knowing that the binding/back strip is also Blackwood--just its sapwood (thank you Bob).

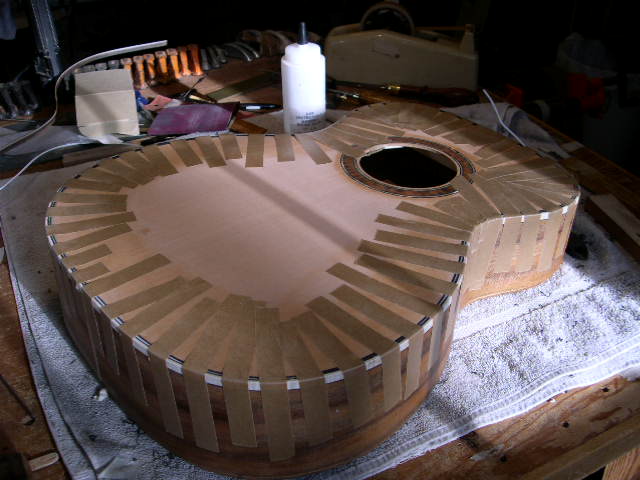

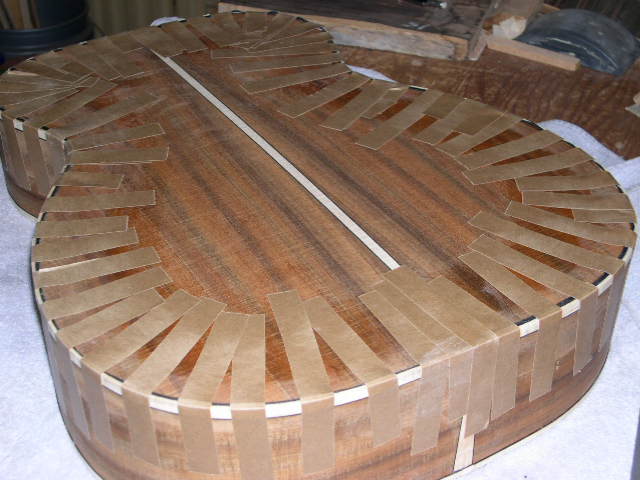

View of the body w/ the back bindings being installed. You can get the idea of the composition here.

Binding3 Sm.jpg
Binding3 Sm.jpg (58.46 KiB) Viewed 25018 times

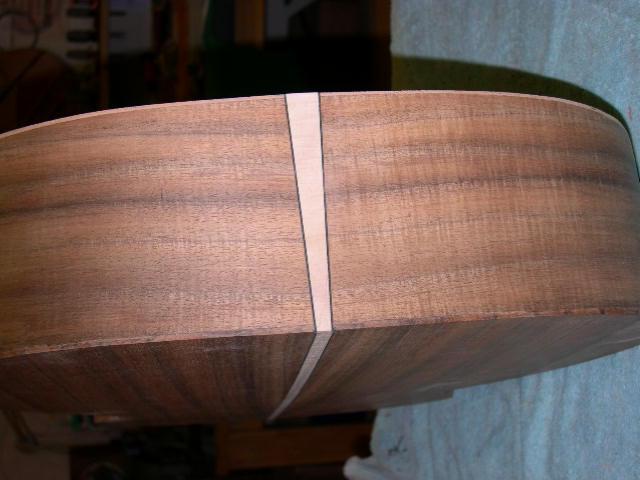

And this last shot is of the butt wedge, and the single black line of purfling:

Binding1 Sm.jpg
Binding1 Sm.jpg (43.74 KiB) Viewed 25018 times

Cheers all,

Steve
There are some great woods, down under!

User avatar
Kim
Admin
Posts: 4376
Joined: Wed Sep 26, 2007 8:32 pm
Location: South of Perth WA

Re: KB Pine/Blackwood OOO

Post by Kim » Sat Oct 23, 2010 5:40 pm

Three words Steve,

Crisp, Clean & Classy 8)

Cheers

Kim

User avatar
PHANTOM
Blackwood
Posts: 148
Joined: Sat Aug 23, 2008 7:00 pm
Location: gladstone qld

Re: KB Pine/Blackwood OOO

Post by PHANTOM » Sat Oct 23, 2010 7:05 pm

Another great looking guitar as always mate. I always look forward to seeing what you are up to and it never disappoints.
Carpe Diem

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Sun Oct 24, 2010 4:31 am

Kim, thanks, gracias and obrigado mate!
Phantom, you too! Kind words are a real treat from the Southern Hemisphere.

Ok, a couple more shots of this guitar.
First up is a rather evocative shot--I particularly like the light in this photo--gluing on the top bindings with a view of the teflon strip sandwiched where the pearl will go:
Binding2 Sm.jpg
Binding2 Sm.jpg (58.15 KiB) Viewed 24971 times

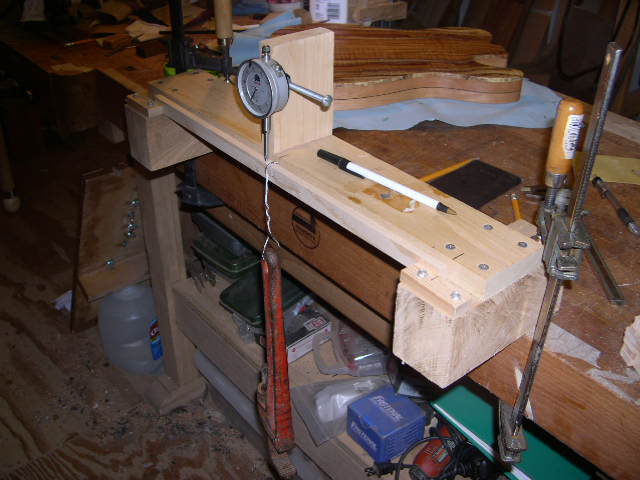

And here's one that you might get a kick out of. This is our brace-deflection-testing-jig.
It's pretty straight-forward. Brace is cut to a given dimension (all of them are), put in the little trough, "one pipe wrench" of weight is applied, and the dial gauge measures the deflection.
This is handy if you want to pair siff brace material with floppier tops. And this KBP top got the stiffest braces in our shop.

Bracing1 Sm.jpg
Bracing1 Sm.jpg (57.48 KiB) Viewed 24971 times
Thanks again,

Steve
There are some great woods, down under!

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Wed Oct 27, 2010 3:59 am

Continuing on!

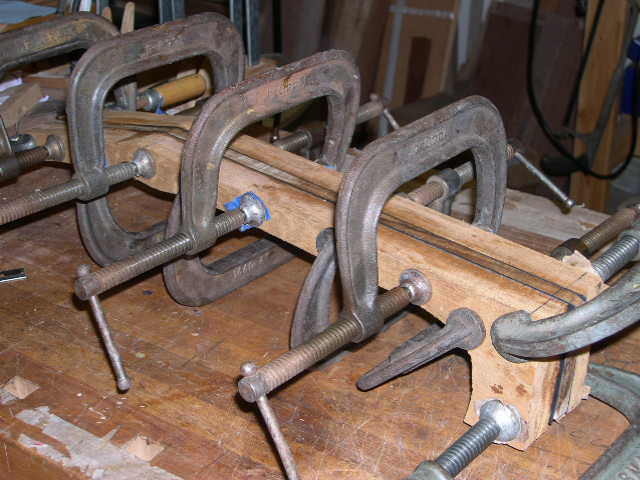

Here's a few shots of neck construction. The usual practice depicted here, a gob-o-clamps.
Alternated to more evenly distribute clamping forces:

Neck1 Sm.jpg
Neck1 Sm.jpg (54.96 KiB) Viewed 24905 times

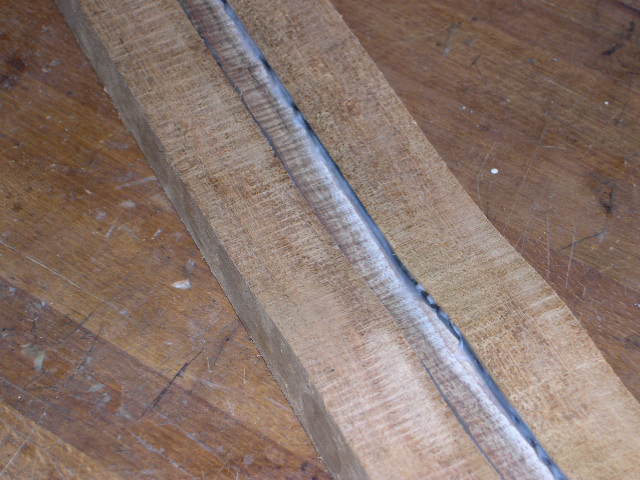

The neck will be mahogany with a center lam of Koa. (Plus some black veneers.)
This particular piece of Koa has some sapwood, so the thought was that it might better match the sapwood bindings.

Neck2 Sm.jpg
Neck2 Sm.jpg (59.81 KiB) Viewed 24905 times

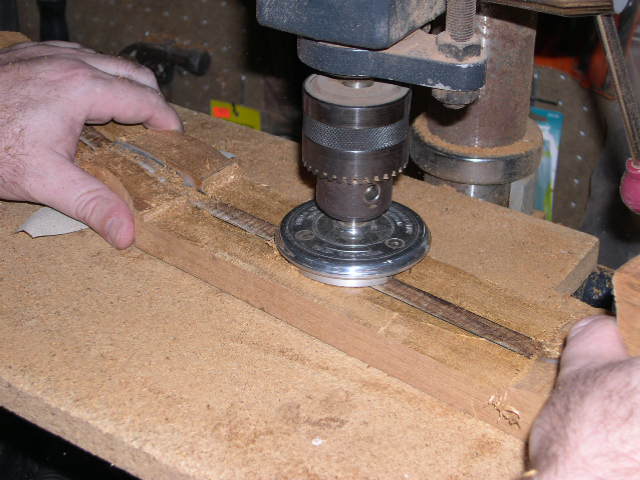

And once the top surface (fretboard surface) is planed straight, we thickness the back of the shaft using our safety planer:

Neck3 Sm.jpg
Neck3 Sm.jpg (58.81 KiB) Viewed 24905 times

Thanks again,

Steve
There are some great woods, down under!

User avatar
Dominic
Blackwood
Posts: 1098
Joined: Thu Jan 10, 2008 8:58 am
Location: Canberra

Re: KB Pine/Blackwood OOO

Post by Dominic » Wed Oct 27, 2010 7:31 am

Steve, I have a nice KB top waiting to be used. So I am following your build choices with great interest. Its looking really nice so far.
Cheers
Dom
You can bomb the world to pieces,
but you can't bomb the world to peace!

Steve
Blackwood
Posts: 165
Joined: Sat Oct 18, 2008 10:18 pm
Location: Coffs Harbour, NSW

Re: KB Pine/Blackwood OOO

Post by Steve » Wed Oct 27, 2010 7:42 am

Steve - from the pictures, you laminate after your neck is cut to roughly to the right shape. How do you go about getting the cut surfaces on the neck dead-flat, prior to gluing? These pieces go through the drum sander?
Steve

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Wed Oct 27, 2010 3:05 pm

Dom, thanks mate! You realize that it's you Aussies that have me inspired, right?

Steve, let me see if I can answer your question:

I do rough out the pieces to approximate shape, and then worry about the faces that glue to each other (the lamination joints). Sometimes the jointer, sometimes the thickness planer. Those joints need to be spot-on. I don't count on the black veneer to hide sloppy joinery, because that will come back to haunt you down the road! I have had wonderful success with my Performax thickness sander with this step, making the edges of the pieces parallel to each other.

Cheers,

Steve
There are some great woods, down under!

Steve
Blackwood
Posts: 165
Joined: Sat Oct 18, 2008 10:18 pm
Location: Coffs Harbour, NSW

Re: KB Pine/Blackwood OOO

Post by Steve » Wed Oct 27, 2010 7:35 pm

Thanks Steve - that does answer it. I have been pondering the method lately & was wondering how people get it done with a stacked heel. I had been contemplating laminating the flat board, but wasn't confident that I could manage to line up the laminations at the scarf joint. I'm going to give the drum sander a go.
Steve

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Sat Oct 30, 2010 2:32 am

Steve, good luck with those neck lams, mate.

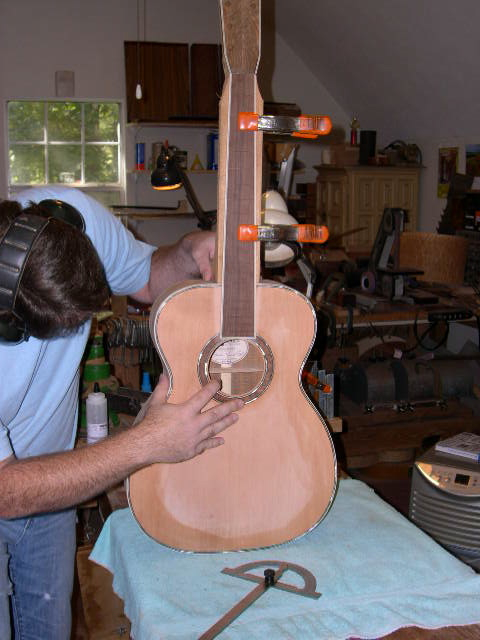

Ok, here's a pic showing the neck fitting process.
And no, we don't work on our backs around here, just had to rotate the pic to show it.
New program doesn't like vertical shots for some reason?
Neck4 Sm.jpg
Neck4 Sm.jpg (198.61 KiB) Viewed 24801 times

You can see the composition and color palette. Tiger myrtle rosette and headstock overlay.
Any one want to take a guess on the fretboard?

Cheers,

Steve
There are some great woods, down under!

Insomnomaniac
Myrtle
Posts: 80
Joined: Fri Oct 15, 2010 6:17 pm
Contact:

Re: KB Pine/Blackwood OOO

Post by Insomnomaniac » Sat Oct 30, 2010 4:48 pm

Native olive perhaps?
Ian

Carpenter turned Knifemaker, now tentatively trying Luthiery as yet another hobby on the list...

User avatar
Bob Connor
Admin
Posts: 3132
Joined: Mon Jul 09, 2007 9:43 pm
Location: Geelong, Australia
Contact:

Re: KB Pine/Blackwood OOO

Post by Bob Connor » Sat Oct 30, 2010 5:03 pm

Mulga
Bob, Geelong
_______________________________________

Mainwaring and Connor Guitars

User avatar
DarwinStrings
Blackwood
Posts: 1877
Joined: Thu Nov 13, 2008 10:27 pm
Location: Darwin

Re: KB Pine/Blackwood OOO

Post by DarwinStrings » Sat Oct 30, 2010 5:35 pm

You just pop that guitar in the post to me Steve and I will have a guess at the fret board. My apologies in advance for Australia post taking so long to return it to you though.

Jim
Life is good when you are amongst the wood.
Jim Schofield

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Sun Oct 31, 2010 11:26 am

Hey! We're back on our feet again! Thanks to whoever set us straight.
And yes, Bob is right, that is some lovely Mulga from Tim S.
It just fit the color so well, and it's hard as granite.

Steve
There are some great woods, down under!

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Tue Nov 09, 2010 3:05 am

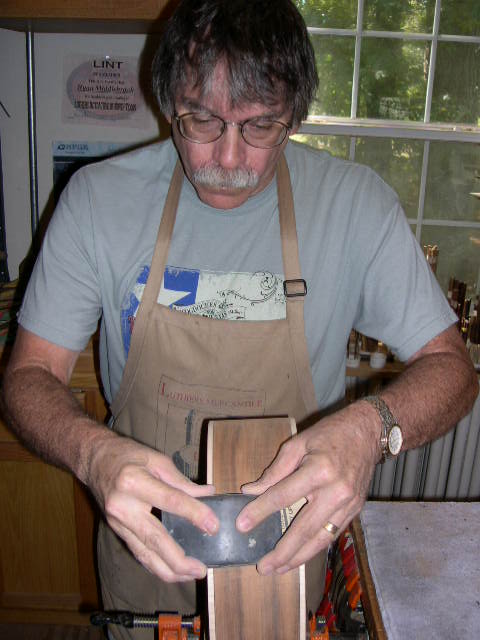

Yours truly working on the bindings.
These Blackwood strips are SO curly that care had to be taken with the scraping process.
Then, at the end, only sanding could level them to the sides...so here's that shot.
Binding4 Sm.jpg
Binding4 Sm.jpg (47.96 KiB) Viewed 24689 times

Now, some bridge work. Trying to stay with Aussie timbers, we settled on Tiger Myrtle for the bridge. Perhaps a bit light, but we'll see how it turns out. Here it is in a lineup of this year's bridge collection:
Bridge1 Sm.jpg
Bridge1 Sm.jpg (57.38 KiB) Viewed 24689 times

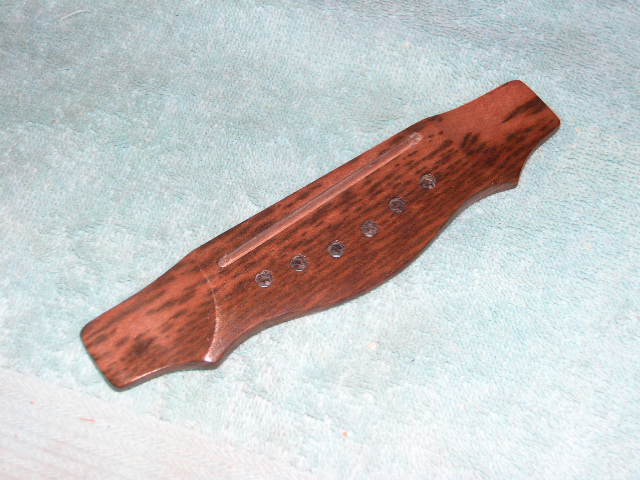

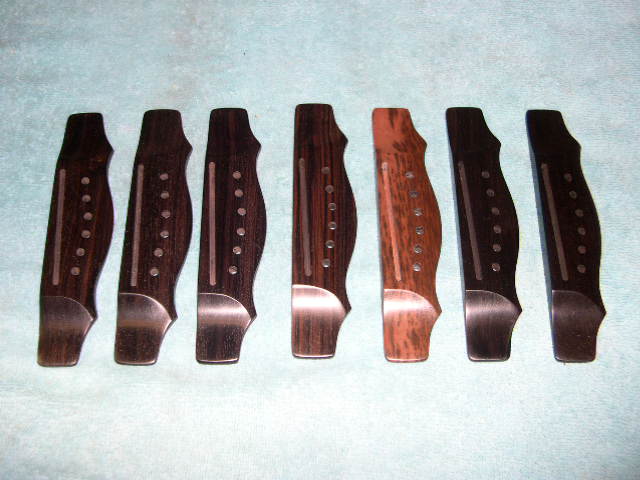

By itself:
Bridge3 Sm.jpg
Bridge3 Sm.jpg (58.77 KiB) Viewed 24689 times

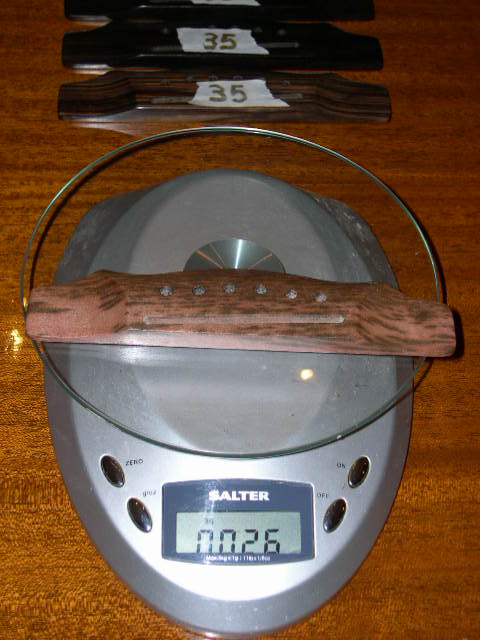

Weighing in. This is the lightest bridge we've made, at a modest 26 grams. Next lightest bridge--at least in this batch--is the Macassar bridge behind it at 35 grams. I will be interested to see just how quick the attack on this guitar will be, not to mention sustain.
Bridge4 Sm.jpg
Bridge4 Sm.jpg (48.86 KiB) Viewed 24689 times
Cheers,

Steve
Last edited by Stephen Kinnaird on Fri Nov 19, 2010 3:09 pm, edited 1 time in total.
There are some great woods, down under!

User avatar
Stephen Kinnaird
Blackwood
Posts: 287
Joined: Sun Oct 14, 2007 1:45 pm
Location: Texas, USA

Re: KB Pine/Blackwood OOO

Post by Stephen Kinnaird » Thu Nov 11, 2010 3:28 pm

Few more shots, assorted things:

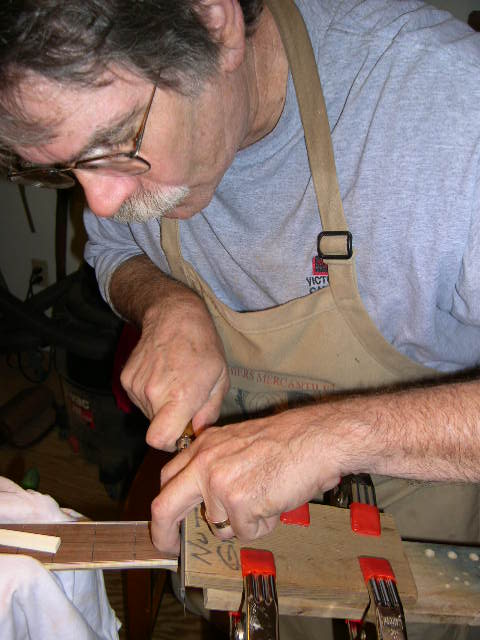

First up, sawing the Tiger myrtle overlay to establish the nut slot.
We place the nut on the peghead plane instead of the fretboard plane, which of course means that the bottom of the nut must be angled to match that angle of the peghead. This is first ground onto the nut at the belt sander, and then this wooden guide holds the thin saw at the vertical (its face is angled to match the vertical plane of the nut). Man I hope that makes sense.
Anyway, here's the shot:
A 002.jpg
A 002.jpg (48.94 KiB) Viewed 24645 times

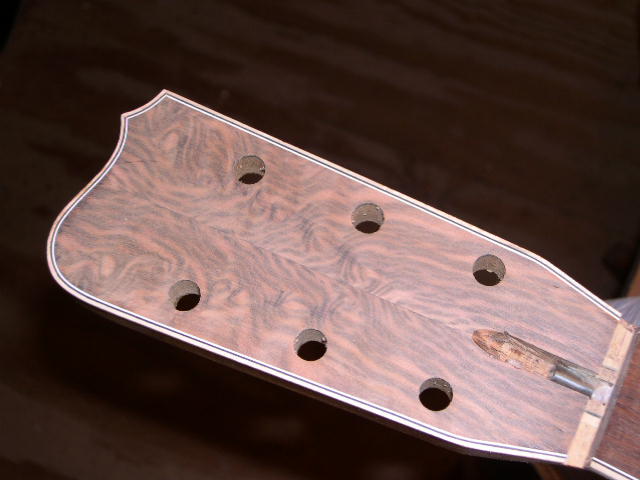

Here's the finished slot. To really clean the bottom of the slot--where the nut will sit--a piece of self-stick sand paper is carefully fitted to the bottom of the nut blank. Which is then slid sideways, sanding/leveling the floor of the slot. Also shows some of the lovely TM that Tim sent:
A 004.jpg
A 004.jpg (47.97 KiB) Viewed 24645 times

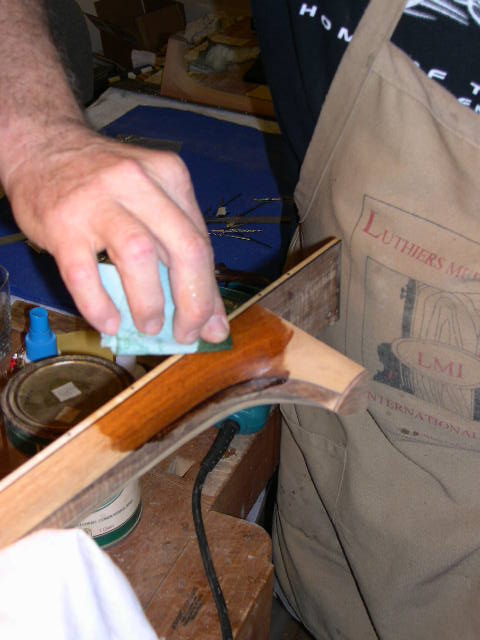

Lastly, carving of the neck is complete, and here is the coat of Danish oil used to darken/tone the mahogany. It kills the pink, and brings an amber hue to the neck which will better match the Blackwood. Also, it really makes the curls of the center Koa lam *pop*.

Thanks for watching,

Steve
A 006.jpg
A 006.jpg (44.89 KiB) Viewed 24645 times
There are some great woods, down under!

liam_fnq
Blackwood
Posts: 596
Joined: Tue Jun 02, 2009 4:54 pm

Re: KB Pine/Blackwood OOO

Post by liam_fnq » Thu Nov 11, 2010 6:18 pm

Very nice Stephen. I'm very impressed with the way the fretboard purfs match up with the headstock purfs.

What sort of final finish is going on the neck. Have you had any dramas with adhesion over the danish oil.

User avatar
P Bill
Blackwood
Posts: 521
Joined: Mon Oct 18, 2010 8:31 am
Location: Cedar Vale, Qld Australia

Re: KB Pine/Blackwood OOO

Post by P Bill » Fri Nov 12, 2010 8:03 am

Very fine work Stephen .Very tastey indeed.
"Were you drying your nails or waving me good bye?" Tom Waits

Bill

Post Reply

Who is online

Users browsing this forum: Google and 132 guests
